100w Power Transformer for 1959 Plexi - Laydown

100Watt Power Transformer - Laydown


This is a laydown style power transformer designed for 100W type circuits from 1970 to 1989 such as the 1959 Plexi type amps.

You have the option to choose the standard 100w output voltages for a B+ around 475v or a higher voltage for a B+ around 560v

We can wind the primary to suit your exact needs, please use the drop down option to choose your correct wall operating voltages.

Note:  B+ voltages are estimates and final B+ Voltages are dependent on your actual wall voltage and bias settings.

Dimensions:

Lamination size: 115mm x 96mm

Stack: 2" lamination stack

Mounting Holes: 3-3/4"  - 3"( 96mm x 76mm)

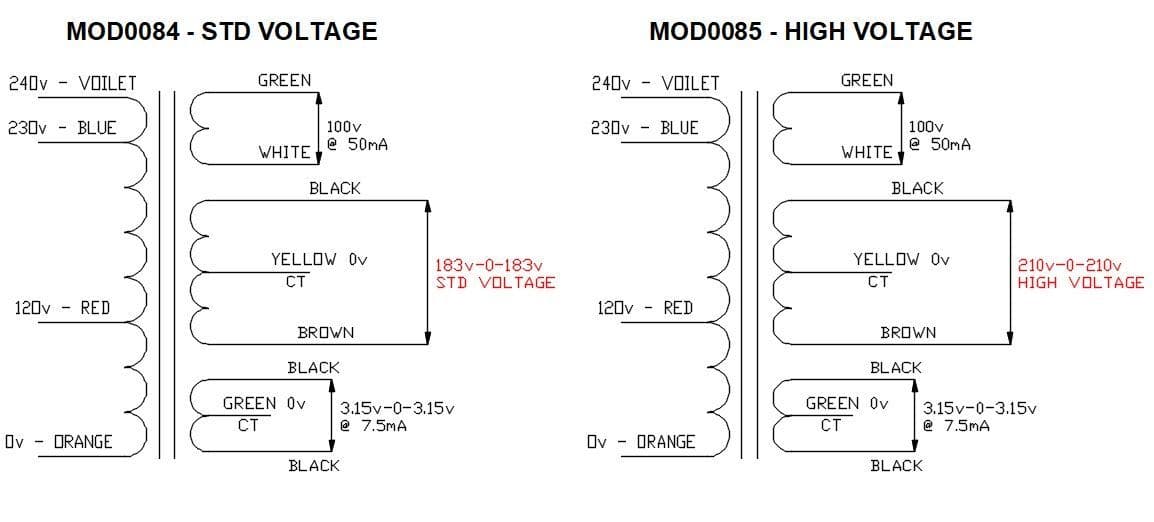

Wiring information is in the images above,
