100w Power Transformer for Frankentone Kit

100Watt Power Transformer - For Plexi Frankentone 100w Kit

MOD0086

This is a laydown style power transformer designed for 100W type circuits from 1970 to 1989 such as the 1959 Plexi type amps.

This one is made for our Frankentone 100w kit with the option to select different B+ voltages.to get the Brown Sound with lower operating voltages.

We can wind the primary to suit your exact needs, please use the drop down option to choose your correct wall operating voltages.

Dimensions:

Lamination size: 115mm x 96mm

Stack: 1.75" lamination stack

Mounting Holes: 3-3/4"  - 3"( 96mm x 76mm)

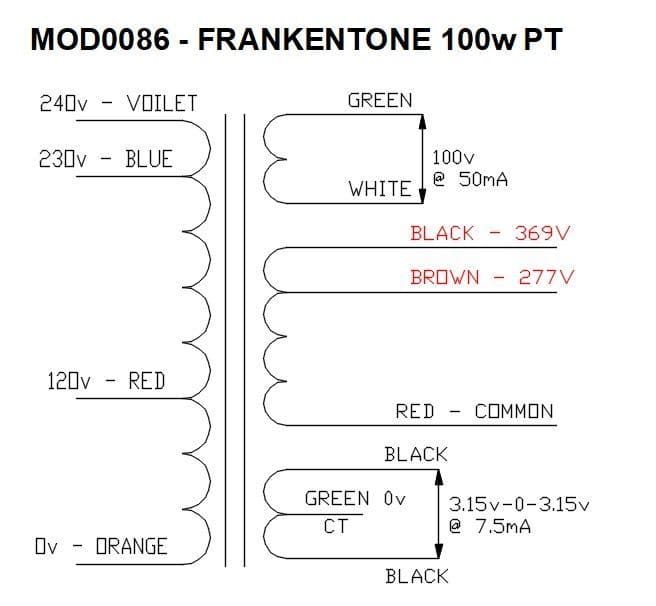

Wiring information is in the images above,
