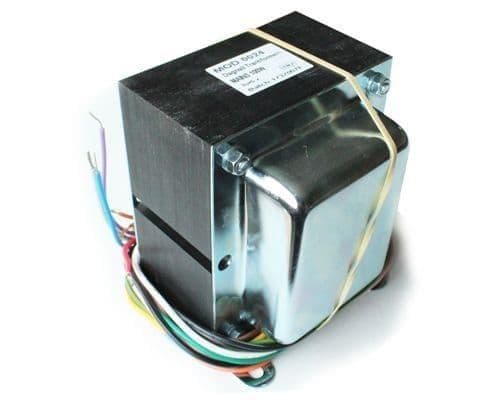

100w Power Transformer for JCM800 with 12v Tap + High Grade Laminations

Product code: 5-PT-MRSH100-02

100Watt Power Transformer with 12v Tap


This is a stand up style power transformer designed for 100W type circuits from 1970 to 1989 such as the JCM800 and 1959 type amps with a 12v - 1 Amp tap for relay switching.



Primary:
0V Orange
120V Red
220V Grey
230V Blue
240V Violett

Secondary:
0V Black
175V Yellow
350V 300mA Brown

0V Green
100V 50mA White

3,15V 7,5A Black
0V Green
3,15V Black

12V 0.8A Pink
0V Pink

100w Transformer for Marshall

Condition New
Product Code 5-PT-MRSH100-02
Weight 4.2kg
