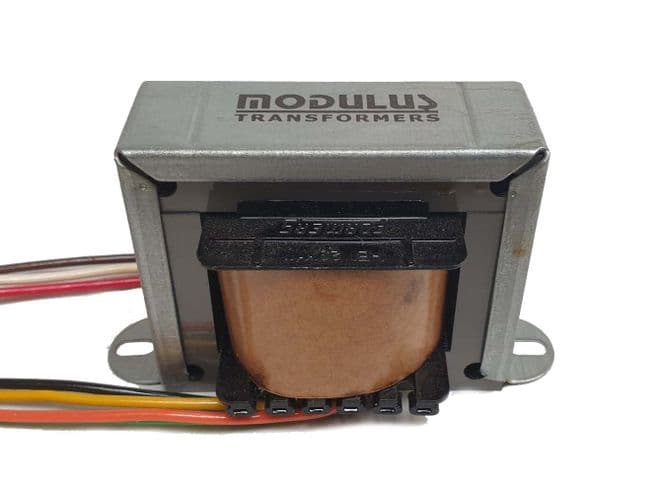

18 watt Output Transformer 4 - 8 - 16 Ohm Secondary

Product code: 5-OT-18w-01
£69.42
£57.85 (ex. VAT)
PayPal Checkout

18 Watt OUTPUT TRANSFORMER
Made in the UK

This is an output transformer for 18watt amps derived from the Marshall 1974 18W amp. Based on the original "RS" design with added 4, 8 and 16 Ohm secondary outputs.

This transformer is also suitable for most guitar amp builds using two 6V6 output valves

TRANSFORMER SPECIFICATION

Primary Impedance 8K Ohms Blue - Red - Brown
Secondary Impedance 4 Ohm Output Yellow
8 Ohm Output Green
16 Ohm Output Orange





Condition New
Product Code 5-OT-18w-01
Weight 1.2kg
