40w Output Transformer for Bandmaster, Vibrolux etc
Replaces 125A6A
4K Primary to 4 Ohm Secondary
Primary - 4k
Blue - Red(CT) - Brown
Secondary - 4 Ohms
Black -Green
Wound with the same winding pattern and lamination core as used on original units.
High Grade Grain Orientated Lamination's
Do not use this transformer with 2 x EL34's

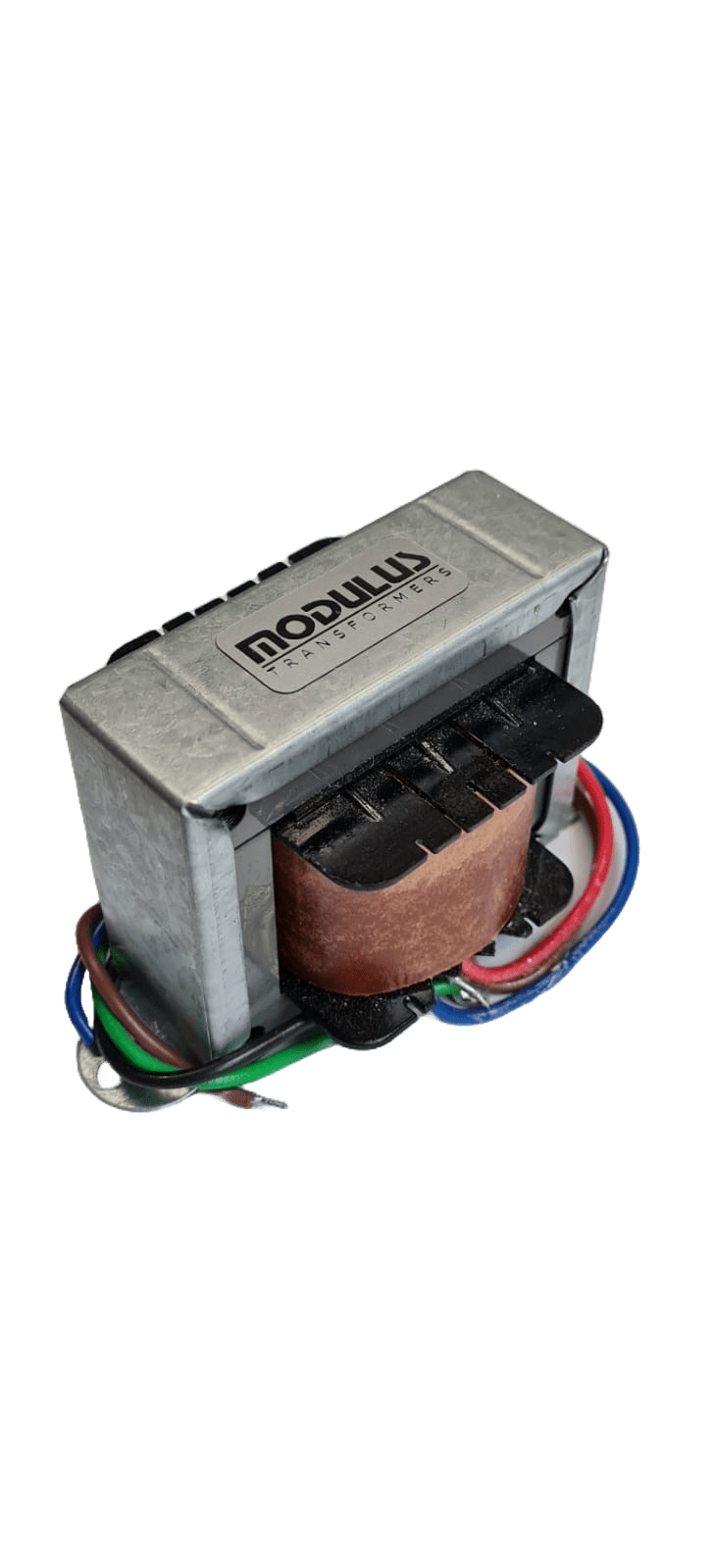

Image for reference only.
| Primary Impedance | 4K Ohms | Blue - Red - Brown |
| Secondary Impedance | Common | Black |
| 4 Ohm Output | Green | |
|
Mounting Holes (Slotted) |
88mm - 98mm | |
| Weight | 1kg | |
| Dimensions | 78mm (L) x 65mm(H) x 60mm(W) | 106mm over flanges |
| identifier_exists | false |
| Brand | Modulus |
| Condition | New |
| Product Code | 5-OT-125A6A-01 |
| Weight | 1.2kg |
