50Watt Hiwatt Style DR504 Output Transformer

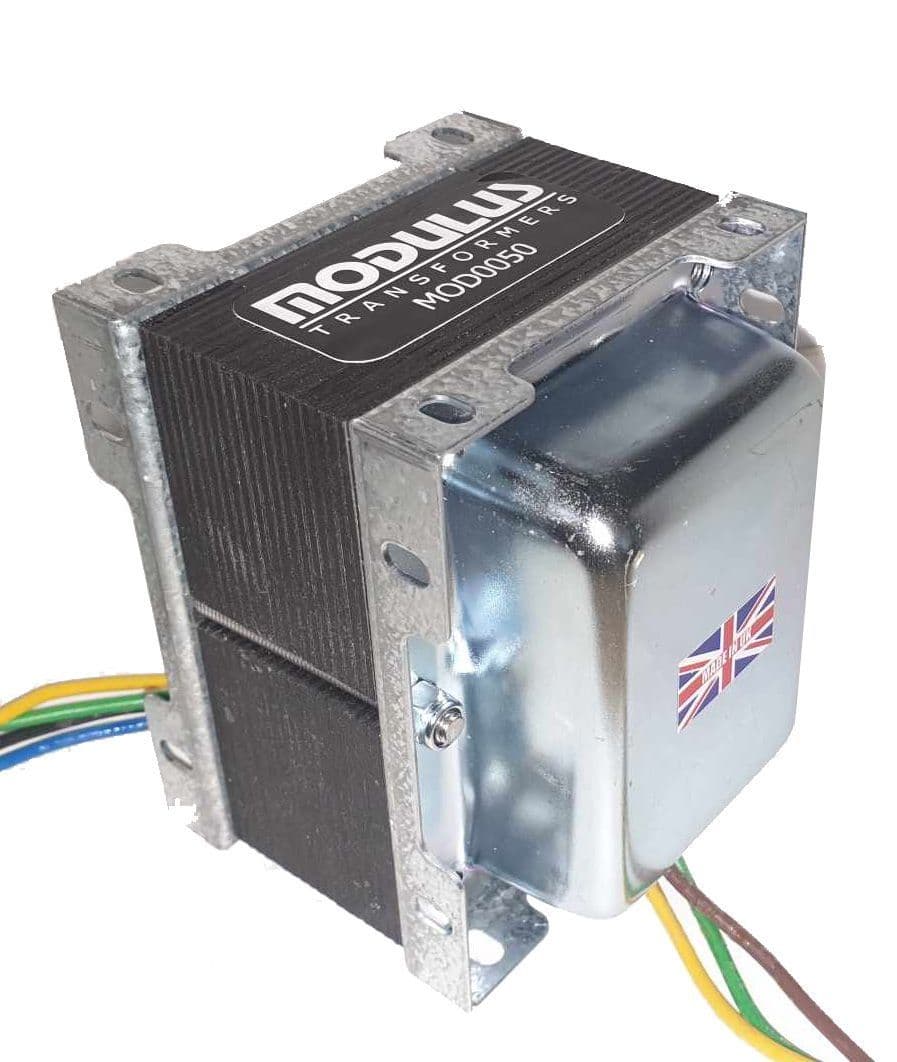

This is a stand up style output transformer designed for 50W type circuits such a the Hiwatt DR504.
Wound with the same 7 section winding pattern as the Partiridge TG6556/2 used on DR504 amplifiers, with Kraft Paper insulation between each layer
The unit has high grade lamination's, which have higher power handling capability for great clarity and punch.
3.8k Primary winding
Brown - Yellow (center Tap) - Green
Secondary 4 - 8 - 16
Black(common)
Yellow - 4 Ohm
Green - 8 Ohm
Blue - 16 Ohm
Weight: 2.4kg
Mounting Centres: 55mm(slotted) x 64mm
| identifier_exists | false |
| Brand | Modulus |
| Condition | New |
| Product Code | 5-OT-MRSH50-02 |
| Weight | 2.5kg |
