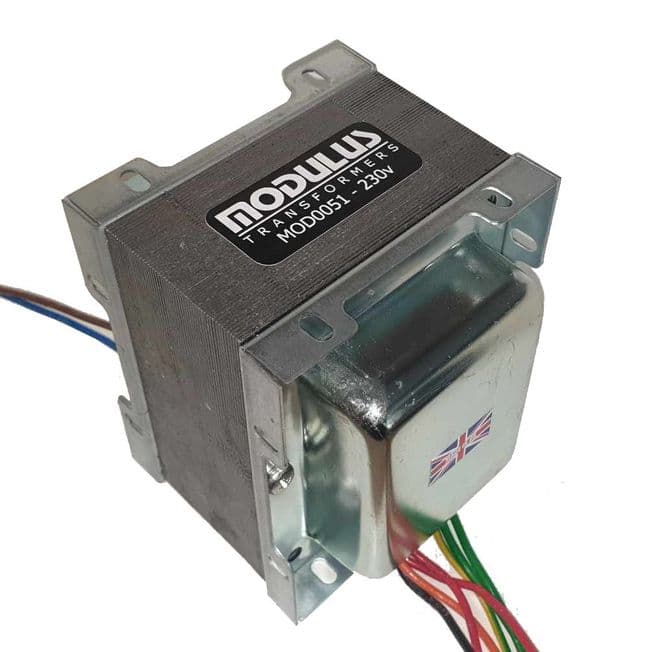

50Watt Power Transformer for DR504
This is a stand up style power transformer designed for 50W type circuits from such as the DR504 type amps
Primary#; Blue - Brown (Select Voltage from list)
HV Secondary: 350v (Red) - 0v (Black) - 350v (Red)
Heater Secondary 6.3v: Green - Green/Yellow - Green
Mounting Centres:69mm (slotted) x 63.5mm
Dimensions(:H)117mm x (W)98mm x (D)110mm
Weight:4.5kg
This transformer is wound in house to order, Dispatch is normally 3 - 5 days after order.
| identifier_exists | false |
| Brand | Modulus |
| Condition | New |
| Product Code | 5-PT-MRSH50-01 |
| Weight | 4.41kg |
