AC30 Style Power Transformer - MOD0011

AC30 Style Power Transformer

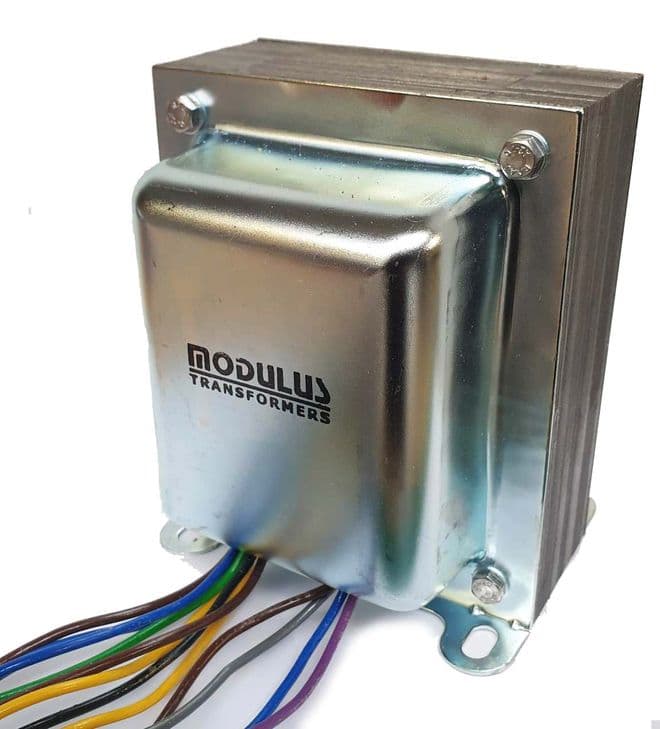

This is a AC30 power transformer that can be mounted in stand up style or laydown.

Direct replacement for AC30's manufactured by Marshall circa 2000, please check dimensions below.

Mounting Centres:

Standup Style:92mm x 60-73mm (Slotted)

Laydown:112mm x 89mm

Primary wires:  0v - Blue 120V - Grey // 0v - Violet 120V Brown

For 240v operation Connect Grey and Violet together Blue 0v - Brown 240v

For 120v Operation connect Blue and Violet for 0v, Connect Grey and Brown for 240v

Secondary Wires
282-0-282 Yellow-Green-Yellow
3.25-0-3.25 Brown-Black-Brown
0-5V Blue-Blue
