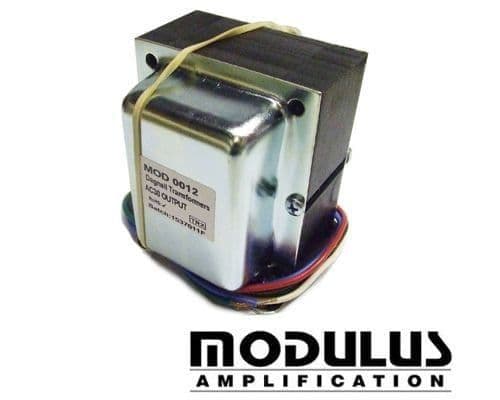

AC30 Output Transformer
Designed and Manufactured by Modulus
This is an standup style output transformer for an AC30 amp or any DIY build with 4 EL84 power valves.Based off the Output Transformer used in Vox AC30 TB which were some of the best sounding reproductions of the AC30.
This transformer is also suitable for guitar amp build using four 6V6 output valves to give firm bass response or even a 2 x 6L6 Power amp
- High grade Grain Orientated laminations
| Primary Impedance | 4K Ohms |
White - Brown (CT) - Red |
| Secondary Impedance | Common | Black |
| 8 Ohm Output | Green | |
| 16 Ohm Output | Blue | |
| Mounting Holes | 63mm x 63mm | |
| Power Handling | Up to 50watts (30w at 25Hz) | |
| Frequency | 25Hz to 20kHz |
| identifier_exists | false |
| Brand | Modulus |
| Condition | New |
| Product Code | MOD 0012 |
| Weight | 2.35kg |
