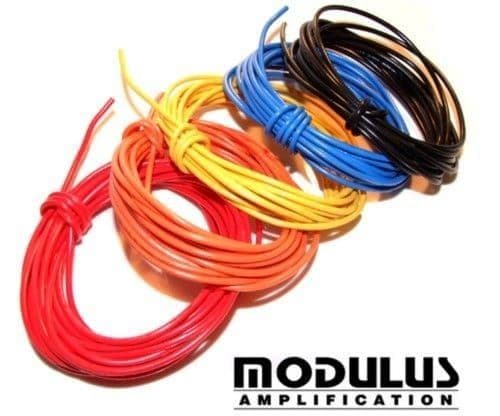

Cable Wire 600v - Multi Pack 5 x 3m Lengths 22 AWG

Product code: 3-PVC600-BBYOR


5 Pieces cut to 3-metre length each

5 colours x 3m lengths of:Yellow

A plain copper stranded conductor covered with a PVC sheath ideal for high voltage applications as found in Valve Amplifiers

Technical Specification:
  • CSA - 0.5mm2
  • Conductor AWG - 22
  • Current Rating - 11A
  • O/D - 2.6mm
  • Conductor Strands - 16@0.2mm
  • Voltage ratings - 600v to earth, 1000v between conductors

If longer lengths or alternative colours are required please contact me directly.

These cables are manufactured to the following national standards, BS6231 (UK), CSA TEW (Canada) and UL style 1015, 1028 or 1283 according to cable size (USA); they are marked accordingly. The advantage of using this type of cable is that it allows many different approvals to be met from a single cable type

Condition New
Product Code 3-PVC600-BBYOR
Weight 0.205kg
