This is the set of transformers we use in our Dumbledore amplifier kits. Made to fit on the Overdrive Special Chassis in the shop. This transformer set is not made to fit any other chassis. If you buy it for another chassis you will have to make it fit.
We make these ourselves, Right here in Kirriemuir, Scotland. They are made to order. Please allow several days for them to be made, baked, varnished and finished off and tested before dispatch.

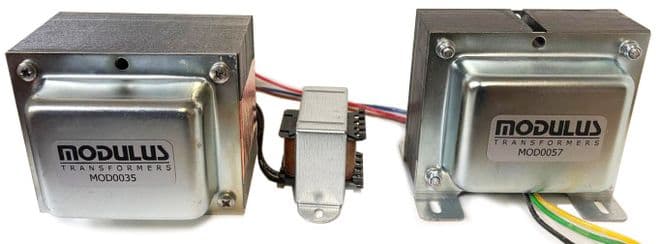

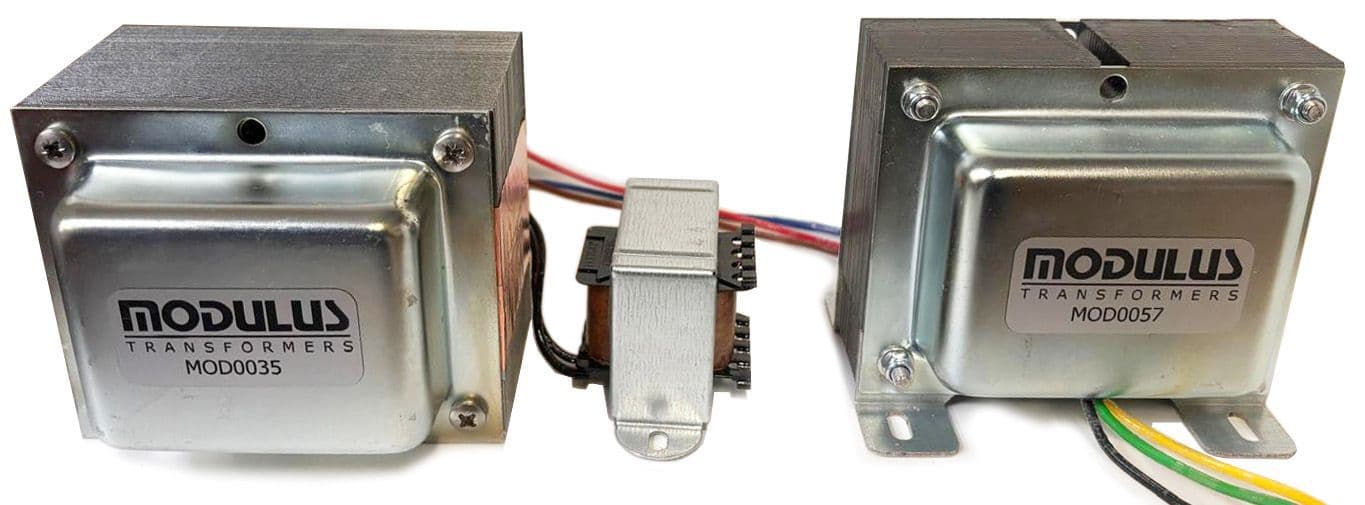

Image for reference only.
MAINS TRANSFORMER
Primary:
Blue - Brown (Select Voltage from the drop down list)
Secondary:
- Red-Black-Red 350 - 0 - 350v
- Blue - 50v
- Green - Green/Yellow - Green 6.3v @ 5A
- Yellow - Yellow (select from drop down)
OUTPUT TRANSFORMER
Primary
Brown - Red - Blue 4k
Secondary
Black (Common) - Yellow (4) - Green (8) - Grey (16)
| identifier_exists | false |
| Brand | Modulus |
| Condition | New |
| Product Code | 5-TRS-DMBLE50-01 |
| Weight | 9kg |
