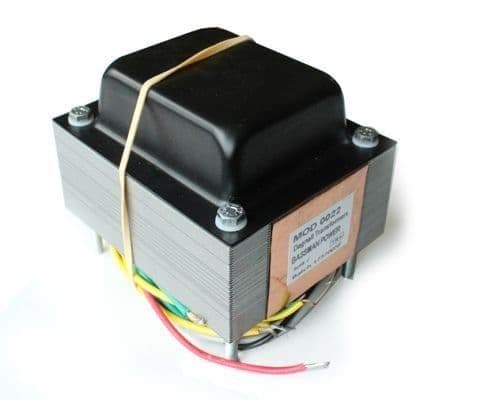

F style 50w Power Transformer - Tweed Bassman

Product code: 5-PT-BSSMN50-01

50Watt Power Transformer for Super Reverb, Pro Reverb, Bandmaster Reverb, Tweed Bassman

  • Lamination 4 1/8" , Stacking 1 11/16"
  • Mounting on 87.5mm x 70mm
  • Dimension: L x W x H: 105mm x 89mm x 106mm

Primary:
240V Brown
230V Black
220V Grey
0V White

Secondary:
345V@200mA Red
52V Blue
0V Green/Yellow
345V Red

3,15V@5.5A Green
0V Green/Yellow
3,15V Green

5V@6A Yellow
0V Yellow




Condition New
Product Code 5-PT-BSSMN50-01
Weight 4.41kg
