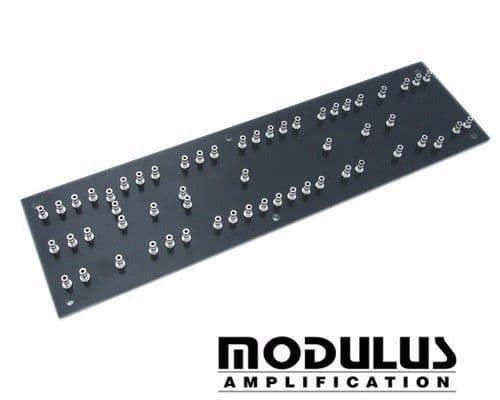

JCM800 2203/2204 Turret Board Assy black

Product code: 9B-JCM800-3

TURRET BOARD - 50WATT - JCM800 2203/2204


This is a turret board for building a JCM800 2203/2204. The original amp was built on a circuit board and so the turrets are laid out to follow the attached layout diagram

Specifications
  • All turrets are double tubular turrets.
  • Mounting Holes are pre-drilled.
  • See attached picture for Layout Info

Download Board Layout

Condition New
Product Code 9B-JCM800-3
Weight 0.125kg
