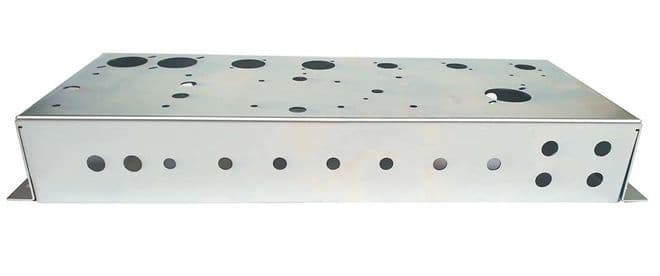

JMP 70's Style 50w Chassis - Steel

Product code: 8-JTM45-13



JMP 50w Style Chassis - Steel

​​​​​​In 1974 Marshall Amplification™ changed the JMP 50w amp chassis from a lay down power transformer to a stand up style power transformer, This chassis is made to specifically replicate the 50w amps from this era and onwards.

Made with 1.5mm Zinc Plated Steel this chassis is strong enough to stand up to intense touring schedule,  you can also bolt or rivet the side flanges to make it even stronger if you want it bomb proof.

Our 50w Power transformer, 50w output transformers and 2 hole chokes will all fit on this chassis.

The chassis is pre drilled for all components including Power Transformer, Output Transformer, Choke, Sockets, turret board and cap can clamps. The octal socket spacing is correct to original specification.

Valve socket holes are sized for the high quality Belton sockets.

  • Length:468mm
  • Width:170mm
  • Height:65mm

Our JTM and Black flag front panel will all fit this chassis. The JTM 45 panels are not suitable.

Condition New
Product Code 8-JTM45-13
Weight 1.9kg
