Layout Drawing - Modern Resistors
Original Layout Photo

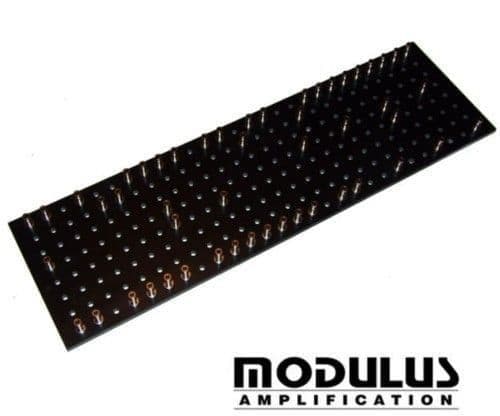

This is a turret board for building a JTM45 amp; The turrets are laid out to follow the original turret board layout with slight changes:
- Turrets are moved in one space to allow the use of shorter modern resistors
- A turret is mounted to make the bias adjustable
Specifications
- All turrets are double tubular turrets.
- Board is made from 3mm FR4 rated Board
| identifier_exists | false |
| Brand | Modulus |
| Condition | New |
| Product Code | 9B-JTM45-1 |
| Weight | 0.121kg |
