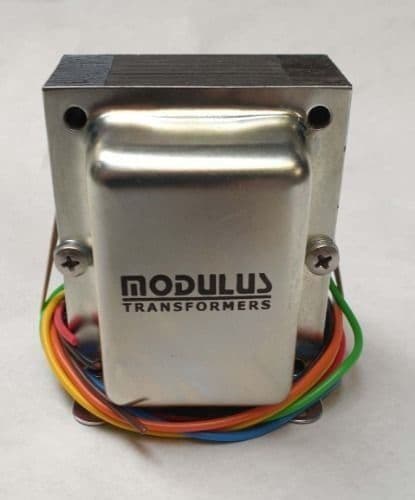

JTM45 Output Transformer
This is a RS Deluxe Replica Output transformer for a JTM45 amp with KT66 or 6L6 Power valves, and fits directly onto the Modulus JTM Chassis.
We manufacture these in house to the same winding pattern as the original RS Deluxe output transformer, the transformer was designed as a hifi transformer with excellent frequency response at max rated power of 30W. The original had two options for primary impedance, 6.6k for KT66's and 8K for 6L6 valves. We have given you the option for either in the drop down menu or if you like we can custom wind one with both primary impedances
- High grade Grain Orientated laminations
- Same Imperial Winding Pattern as the original RS Deluxe transformer
- -3Db down at 35Hz and 35kHz at maximum rated power 30
We do not recommend using this transformer with EL34 power valves
Primary Impedance | 6.6K Ohms or 8k | Black - Brown (CT) - Red |
Secondary Impedance | Common | Yellow |
4 Ohm Output | Orange | |
8 Ohm Output | Green | |
16 Ohm Output | Blue | |
Mounting Holes | 63mm x 63mm | |
Power | 30 Watts |
Condition | New |
Product Code | MOD 0001 |
Weight | 2.35kg |
