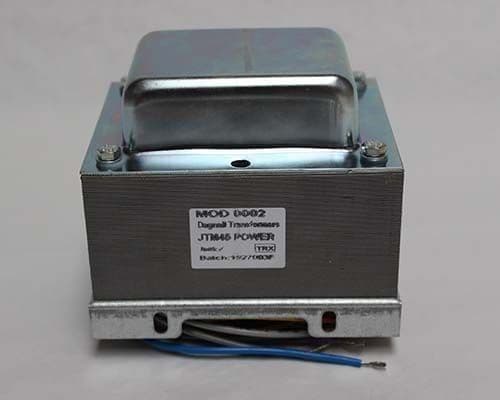

JTM45 Power Transformer
Designed in the UK by Dagnall Transformers
This is a power transformer designed for JTM45 type circuits. Sizes based on the vintage transformer specs, the design is a Lay down style for mounting on our head chassis. We also stock end bells for stand up mounting that can be purchased seperatly.
Suitable for use with 120v and 240v power supplies, 50 - 60hz
Comes with internal mounting bracket
Please check the dimensions below to ensure this will fit your chassis, this transfomer will not fit a Marshall JTM45 Re-issue!
| Primary Input Voltages | 0 - 120v + 0v - 120v | Blue(0) - Grey(120v) + Voilet(0V) - Brown(120v) |
| Secondary Voltages | 345v - 0 - 345v (150mA) | Red - Grey - Red |
| 3.15v - 0 - 3.15 (5A - heaters) | Green - Green/Yellow - Green | |
| 5v (2A - Rectifier heaters) | Yellow - Yellow | |
| Weight | 4.4kg | |
| Mounting Holes | 95.25mm x 76.2mm (5mm Holes) |
| identifier_exists | false |
| Brand | Modulus |
| Condition | New |
| Product Code | 5-PT-JTM45-01 |
| Weight | 4.6kg |
