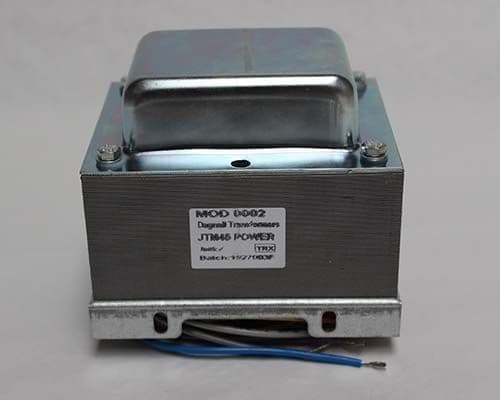

JTM50 Power Transformer
This is a power transformer designed for JTM50 and JMP50w type circuits that use a laydown power transformer. Sizes based on the vintage transformer specs, the design is a Lay down style for mounting on our head chassis with power transformer cut out.
Select your countries wall voltage from the drop down list.
UK120 Lamination's with a 2" stack, Comes with internal mounting bracket
| Primary Input Voltages | Standard | Blue - Brown |
| Select from drop down | Multi Tapped option | Blue - Black - Orange - Yellow |
| Secondary Voltages | 350v - 0 - 350v (250mA) | Red - Black - Red |
| 3.15v - 0 - 3.15 (5A - heaters) | Green - Green/Yellow - Green | |
| Weight | 4.4kg | |
| Mounting Holes | 95.25mm x 76.2mm (5mm Holes) |
| identifier_exists | false |
| Brand | Modulus |
| Condition | New |
| Product Code | 5-PT-JTM50-01 |
| Weight | 4.6kg |
