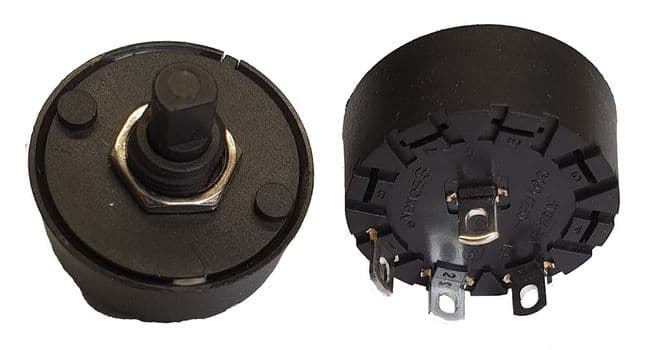

Soken Rotary Switch - 4A SP3T - For Impedance Switching

Product code: 2SW-ROT-1

Soken Rotary Switch - 4A SP3T - For Impedance Switching

  • 1 pole / 3 position
  • Solder lugs
  • Shaft Diameter 6 mm, D-Shaft
  • Rating: 250 VAC 6(4) A
  • Contact Resistance: 100MOhm Max
  • Dielectric Intensity:
    • 1500VAC / 5S for terminal and terminal
    • 3000VAC / 5s for terminal and ground
  • Withstand Voltage: 1500VAC / min
  • Operating Temperature: -25~85°C
  • Insulation Resistance: 500 VDC, 100MOhm Min
  • Electrical Life: 10,000 cycles
  • Housing material: PA66
  • Ø: 22 mm
  • h: 17,0 mm
  • Ø Frontpanel drill: 10 mm

Condition New
Product Code 2SW-ROT-1
Weight 0.031kg
