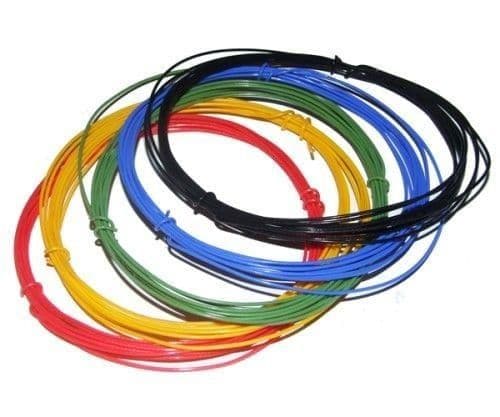

Teflon PTFE Premium Hook Up Wire - 600v - 22awg - Price per metre

Teflon PTFE Premium Hook Up Wire - 600v - 22awg - Price per metre

Product code: 3-PTFE600-

AttributeValue
Cross Sectional Area0.35 mm²
Sheath ColourGreen
American Wire Gauge22 AWG
Core Strands7/0.25 mm
Insulation MaterialPTFE
Outer Diameter1.27mm
Length30m
Voltage Rating600 V
Conductor MaterialSilver Plated Copper
Wire StyleUL1213
Maximum Operating Temperature+200°C
Shield TypeUnshielded
SeriesPremium
Minimum Operating Temperature-60°C
Standards MetMIL-W-16878/4, NEMA HP-EXBBB, UL1213, VW-1
Insulation Wall Thickness0.3mm

identifier_exists false
Brand Modulus
Condition New
Product Code 3-PTFE600-
Weight 0.02kg
