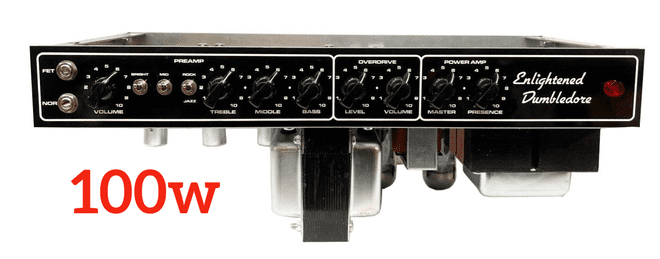

The Enlightened Dumbledore 100w Amplifier Kit #124

The Enlightened Dumbledore 100w Amplifier Kit  #124

Power Output 100W Nominal

Dumbledore: The word dumbledore is an old-fashioned British term for a bumblebee. A rare and magical creature in the bee kingdom.

Modulus Kit Suggested Layout: DOWNLOAD HERE

Modulus Kit Picklist: DOWNLOAD HERE

This is our first Dumbledore amp kit, inspired by the #124 Overdrive Special amp built by Dumble in the early 1980’s which was later then modified or “enlightened” to what is known as the Skyliner specs.

The kit has a few layout improvements to account for modern parts and to keep things tidier and easier for amateur amp builders to execute safely and successfully.

One major deviation of the kit is the FET board input, We have used our own MOFET design which utilises a high voltage LND150 Mosfet that allows more gain and tone shaping options for the builder than the traditional FET board offered. We actually much prefer plugging our guitars into this input for a really punchy clean and driven tone that is super responsive.

This is a complicated amp build not intended for beginners, you need to have built a few amps before tackling this kit/build.

We have tried to make the options above flexible enough to build the exact amp you want, but if you want some small differences please let us know.

Most Dumble amps were built with Polyester Orange Drop capacitors. but this amp will sound great with any of the capacitor options listed above.

If you select to include valves we typically supply TAD and JJ Electronic valves with this kit. We can supply other valves on request.

You can also select your faceplate colour and knobs, we make faceplate's to order so if you have any special requirements let us know and we will see what we can do to help.

Our transformers are the highest quality and made in house for this circuit. The power transformer is wound on a dual section bobbin to comply with safety standards. The output transformer has a 2K primary load with 4 and 8 Ohm Secondary Outputs.

Please look at the picklist to see what is included with this kit - The footswitch is not included in this kit at this time.

You can choose to have the Enlightened Dumbledore text on the front panel or a different name pf your choice. Please enter the name on in the text box above. We will not place the "By Dumble" text on the front panel, please don't ask.

Please e-mail us if you have any questions

SHIPPING DETAILS

Parts will be picked once the order is received and due to the high number of parts involved in this kit will be generally be shipped within 7 to 10 working days from receipt of order. We try to keep all parts in stock to satisfy kit orders, Please contact me for estimated shipping times prior to ordering if concerned.

Cabinets are made to order and shipped separately, dispatch times are typically 4 to 6 weeks for cabinets.
