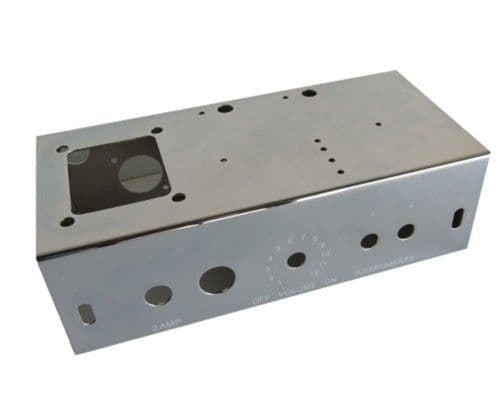

This is a Champ 5F1 style steel chassis, the finish is a bright plated finish with all decals screen printed in white text
The chassis has the following cut outs:
2 Octal Holes
1 9-Pin Socket Holes
2 Inputs/Channel
1 Volume
Fuse
Pilot Light
Overall Dimensions are:
- Length = 222mm
- Width = 105mm
- Height = 67mm
Please Note: We have a transformer set to match this chassis.
| identifier_exists | false |
| Brand | Modulus |
| Condition | New |
| Product Code | 8-5F1-1 |
| Weight | 0.7kg |
