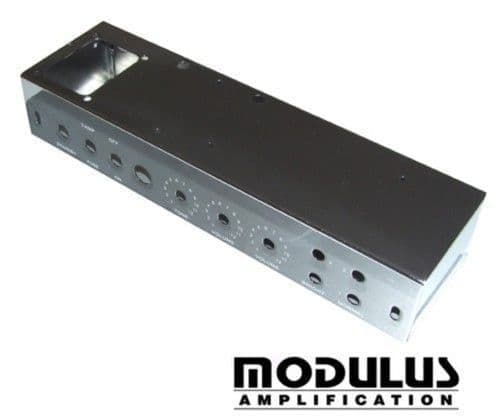

This is a Deluxe 5E3 style steel chassis with all decals screen printed in white text
The chassis has the following cut outs:
3 Octal Holes
2 9-Pin Socket Holes
2 Inputs/Channel
2 Volume
Tone
Power
Fuse
Pilot Light
Standby(Replaces dangerous ground switch).
Overall Dimensions are:
- Length = 370mm
- Width = 105mm
- Height = 66mm
Please Note: The power transformer cut out on this chassis is sized to suite the Hammond Deluxe/Deluxe Reverb power transformer #290BEX or the Modulus Deluxe Transformer.
The valve socket cut outs are sized for the white ceramic style sockets, the holes may have to be opened up to fit Belton style sockets
| identifier_exists | false |
| Brand | Modulus |
| Condition | New |
| Product Code | 8-5E3-1 |
| Weight | 1kg |
