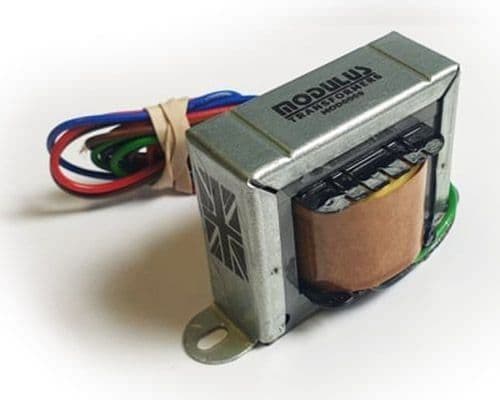

Tweed Deluxe Output Transformer - Based on Triad-108

Product code: 5-OT-DUX
£55.00
PayPal Checkout

DELUXE STYLE OUTPUT TRANSFORMER

This is a Deluxe style output transformer made to be a direct fit on our Tweed Deluxe combo and head chassis or could be used as a replacement for Original units.

We offer two variations here, The first is the Tr-108 replica, directly based on the Triad-108 units that were fitted to Deluxes in the 50's, the second option is our own recipe, Tr-108 Plus, that builds upon the Triad-108 design, but extends the bass and treble response slightly.

This transformer is suitable for most guitar amp builds using two 6V6 or two EL84 valves

TRANSFORMER SPECIFICATION
Primary Impedance7.2K OhmsBlue - Red - Brown

Secondary Impedance8 Ohm OutputBlack - Yellow on Tr-108 (Green on Tr-108 Plus)

Weight680g












Condition New
Product Code 5-OT-DUX
Weight 1.1kg
