This is the solutions for those looking to build a tweed deluxe with the option of using different speaker cabs.

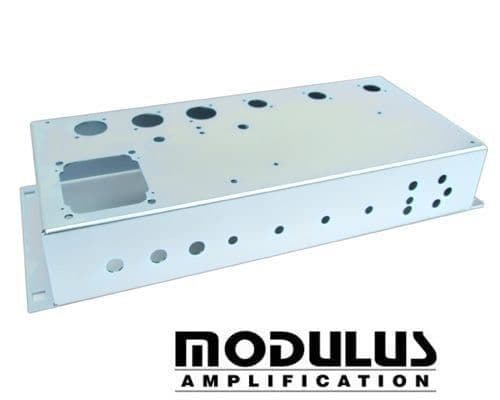

The chassis is made with 1.5mm thick laser cut steel plate with spot welded corners, finished with bright zinc plating and passivatedSeparate face plates are required, and can be purchased in the shop or contact us if you want a custom made plate.The chassis has the following cut outs:
3 Octal Holes
3 9-Pin Socket Holes
Overall Dimensions are:
- Length = 370mm
- Width = 165mm
- Height = 66mm
Please Note: The power transformer cut out on this chassis is sized to suite the Hammond Deluxe/Deluxe Reverb power transformer #290BEX or the modulus Deluxe transformer.
The valve socket cut outs are sized for the white ceramic style sockets, the holes may have to be opened up to fit Belton style sockets
Condition | New |
Product Code | 8-5E3-2 |
Weight | 1.2kg |
